Services

  1. Design
  2. Machining
  3. Production

CAD/CAM

Modelwerks has highly skilled CAD capabilities and a solid foundation in design intent-minded modeling that allows flexibility throughout the design process, which later aligns with continuous process improvement (CPI).

Our background in wind tunnel and flutter models supports a close relationship to design for function and large complex assemblies. Our knowledge of manufacturing processes enables concurrent engineering during the design process. This allows us to produce products that are focused on quality, manufacturing efficiency, and ease of assembly.

We use software packages applicable to our scope of work:

  • Pro E Wildfire
  • Rhino 4.0
  • SURFCAM
  • 3D Scanning Software


Process:

  • Integrated Design
  • Collaborative Ideation
  • Concept Design/Modelling
  • Computer Aided Manufacturing Translation
  • Interference Check
  • Motion Simulation

Product Line:

  • 3D CAD Model
  • Improving and Checking Designs

Gallery:

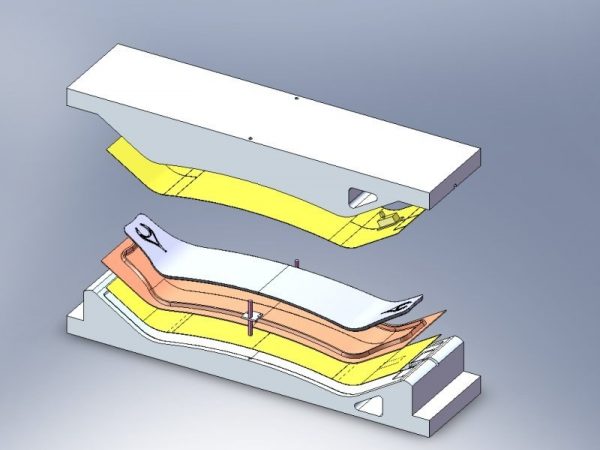

Mountain board Mold
Mountain board Mold

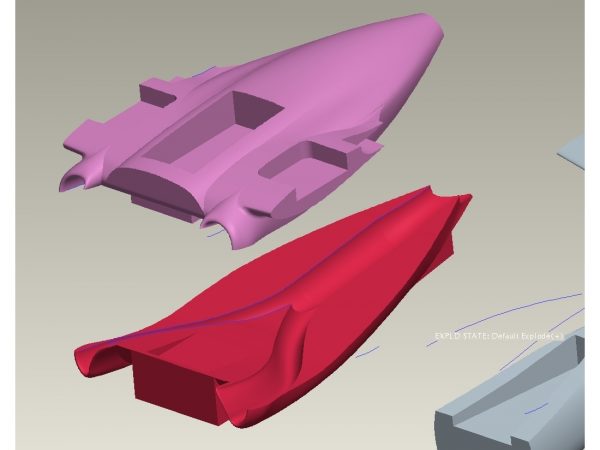

Mechanism Design
Mechanism Design

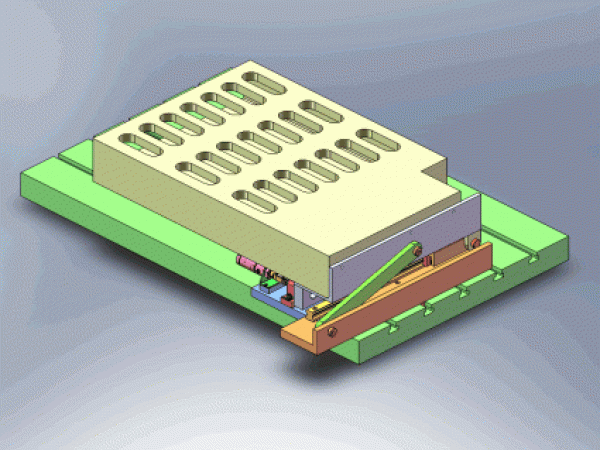

Test Fixture
Test Fixture

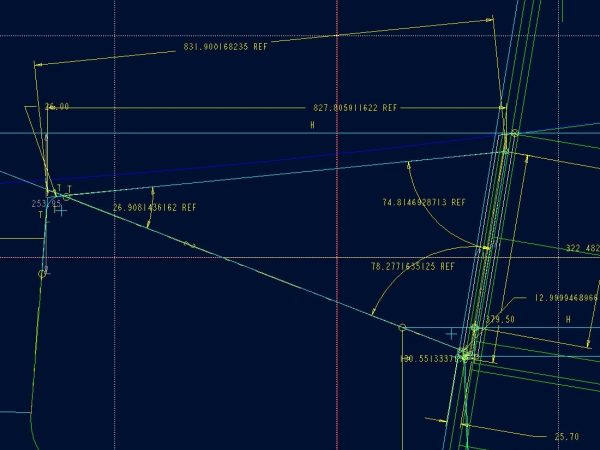

Pro E Wildfire
Pro E Wildfire

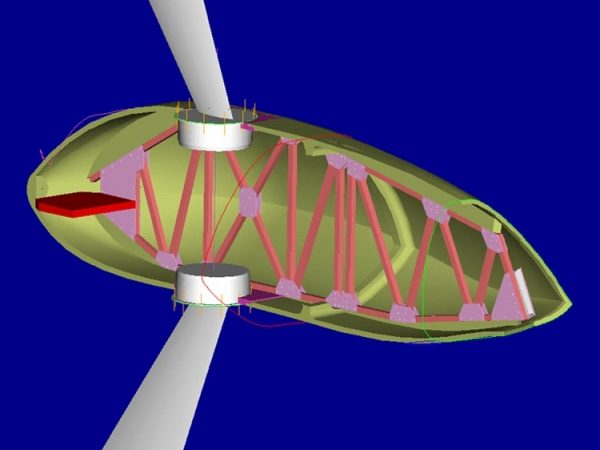

Wing Design
Wing Design
Mountain board Mold
Mechanism Design
Test Fixture
Pro E Wildfire
Wing Design
