Resin Transfer Molds

Client: Thermetrics LLC

Modelwerks has an ongoing partnership with Thermetrics LLC, an advanced thermal measurement technology company, to help develop and manufacture aluminum molds for glass-fiber composite manufacturing. We have designed and machined the RTM closed-molds for each section of their Newton Manikin. Newton is used for a broad range of environment and clothing testing so each mold had to be designed to accommodate embedded technology.

Modelwerks also designed a proprietary tool for the CNC mills that lays wire on the glass fiber sheets.

Tasks:

  • Mold Design
  • Mold Machining
  • Proprietary CNC wire laying tool

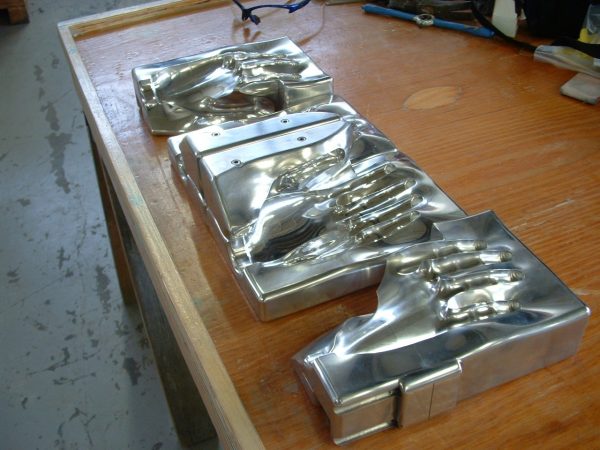

Hand Mold 1St Gen
Hand Mold 1St Gen

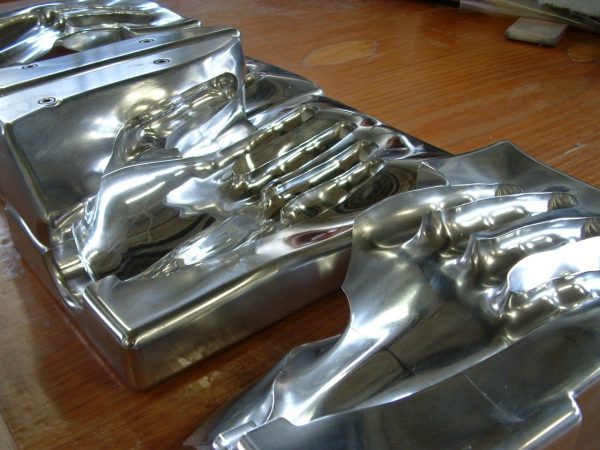

Hand Mold 1St Gen 2
Hand Mold 1St Gen 2
416
416
418
418
Hand Mold 1St Gen
Hand Mold 1St Gen 2
416
418
